EBS: How to Upload Shapes Created in Google Earth to Everbridge Suite

Topic:

How to upload shapes created in Google Earth to Everbridge Suite

Description:

Follow the steps below to create a shape using Google Earth and upload it to Everbridge Suite:

Creating and Saving a Shape Using Google Earth

User-added image

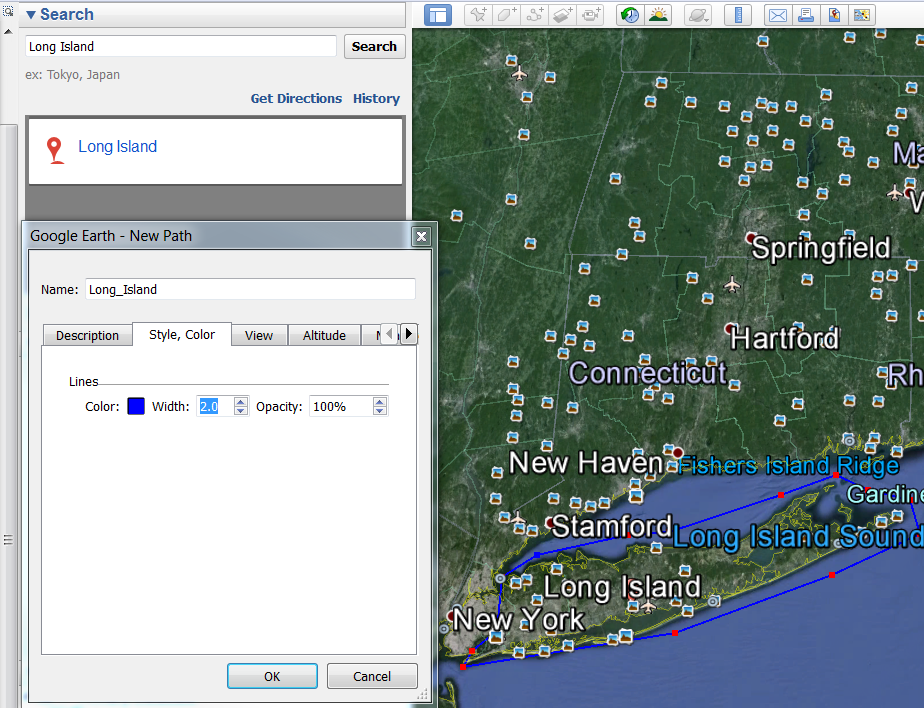

  1. Search for the desired address, zip code, or region using Google Earth.
  2. Select Polygon Tool from the toolbar above the map.
  3. Draw the polygon in Google Earth.
  4. Name the polygon without using spaces between words or characters.
  5. From the Google Earth - New Path window, choose the Style, Color tab to set Color to blue and Width to 2.0.
User-added image

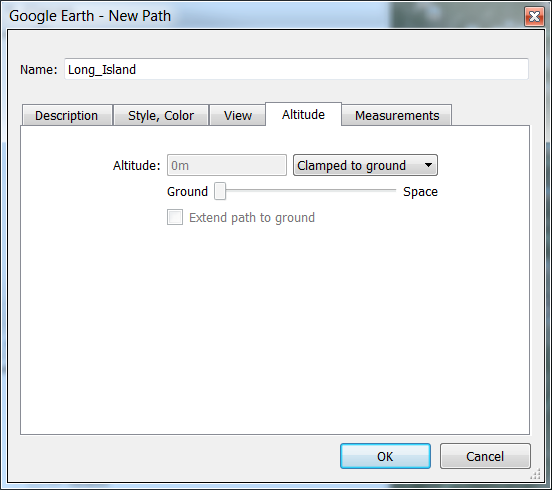

  1. Click the Altitude tab, and select Clamped to ground from the dropdown menu.
  2. Click OK to save and close the window.
User-added image

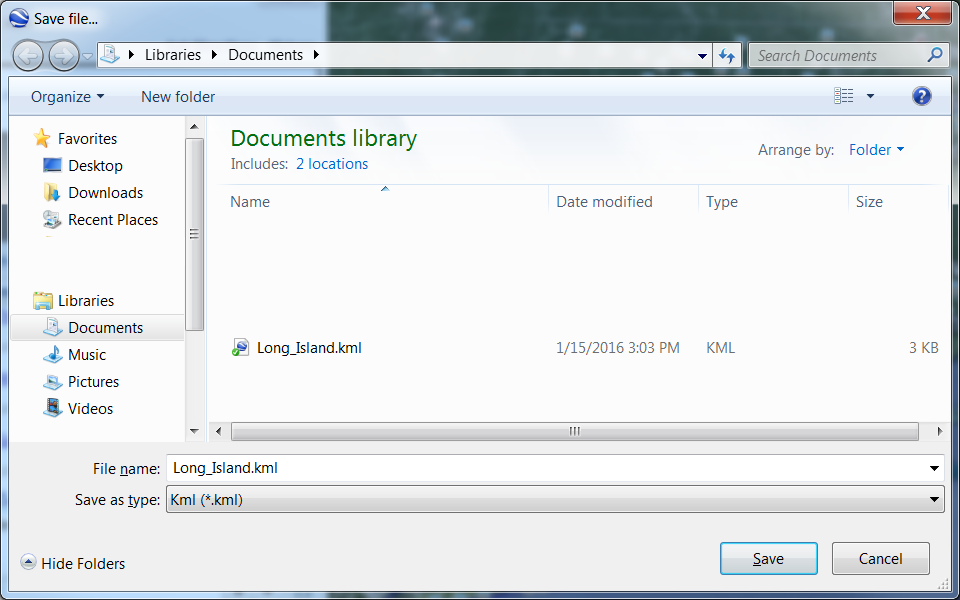

  1. Select File from the top left of the page.
  2. Click Save.
  3. Click Save Place As....
  4. Save the file as a ".kml" file.

Uploading to Everbridge Suite

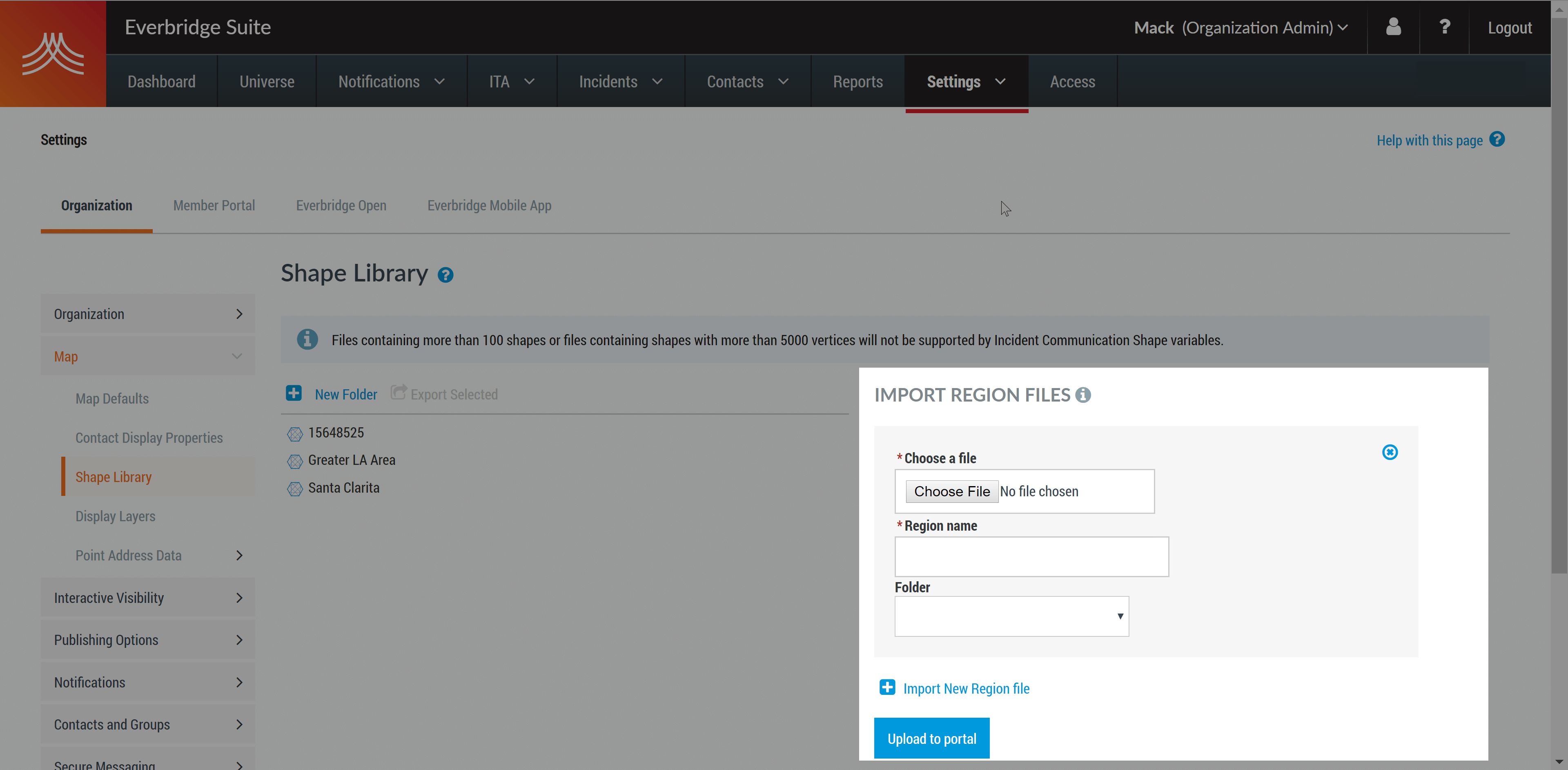

Import Region
  1. Log in to the Manager Portal and select the desired organization from the upper right-hand corner.
  2. Click the Settings tab from the top of the page.
  3. Click Map from the left of the page.
  4. Click Shape Library from the sub-menu.
  5. From the Import Region pane, click the Import region file link.
  6. Upload the desired .kml file.
  7. Enter a Region name.
  8. Select the desired folder to upload to from the dropdown menu.
  9. Click Upload to portal.
