EBS: Contact Upload Error Code: 'Required Column Not Found'

Error:

Error Code:

Required Column Not Found

Error Message:

  • External ID
  • Record Type
  • First Name
  • Last Name

NOTE: Contact Upload file failure error messages may be viewed under ContactsUploads > User-added image. Clicking on the User-added image icon next to the desired upload file brings you to the Upload Results page where the error is displayed.

Root Cause:

This error can occur for a few different reasons that will be explained with examples. Check the Error Message column under Header Errors for the column/header affected.

  • Required Column Missing - CSV upload file is missing one or more required columns. The column could also be present but the header is missing or misspelled.
  • Encrypted File - If an encrypted file is uploaded, but encryption is turned off for the org it will cause a missing column error for all four required columns.
  • Delimiter Setting- If your file has an error for all four required columns, AND your file was uploaded via SFTP, your organization delimiter setting might not match your file.

Solution:

Please see the solutions below for each of the separate root causes for the error.

Root Cause - Required Column Missing

In this example, the error is due to a missing or misspelled required header. The required headers/columns are External ID, First Name, Last Name, and Record Type.

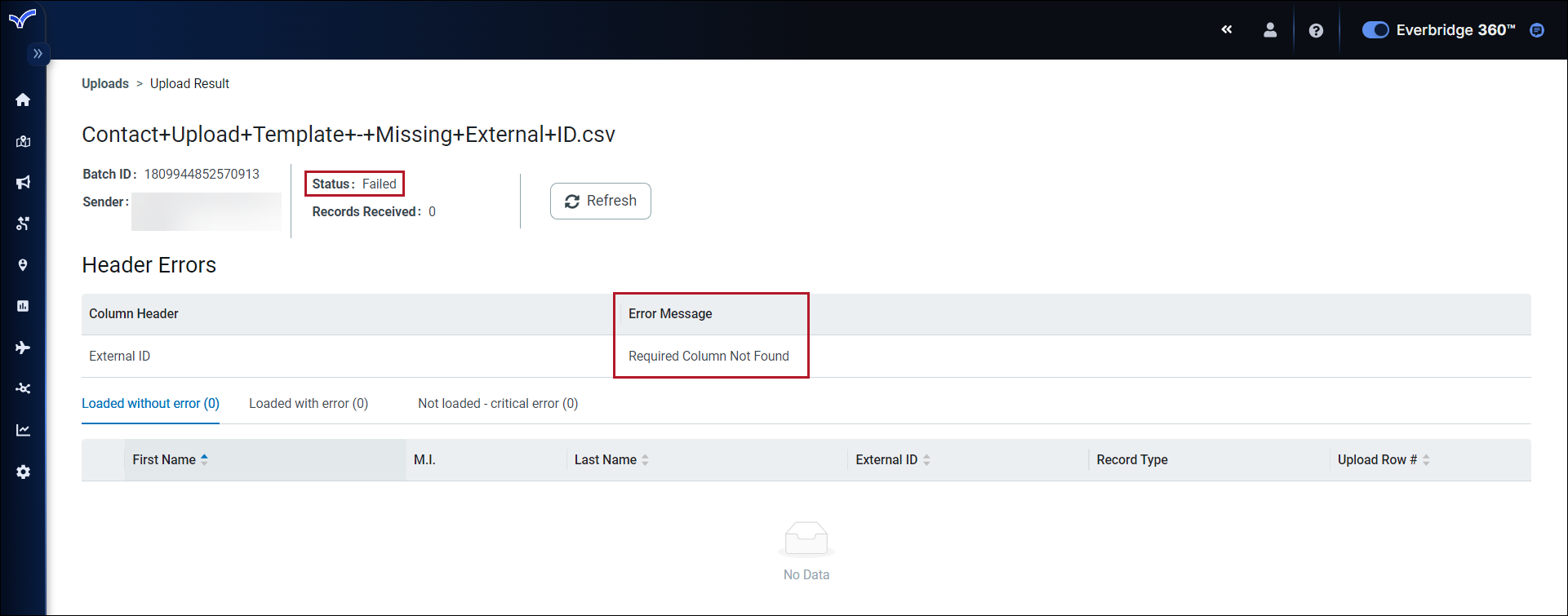

Required Column Missing UI Error

The following file would cause the above error.

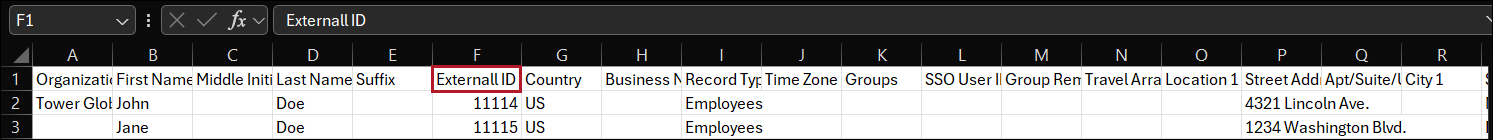

Bad Header - Excel


Note that in the column header "ExternalID" there is no space between External and ID. Column headers need to exactly match the format provided in the Upload template unless the Contact Upload Mapping feature is being used. The solution, in this case, would be to download the Upload template, observe the column header for External ID and change the column heading to match that format. In this case External ID with a space. For more information see Knowledge Base Article 000002683 - How to Download a CSV Template that can be used for Uploading Contacts into Everbridge CEM Suite.

Root Cause - Encrypted File

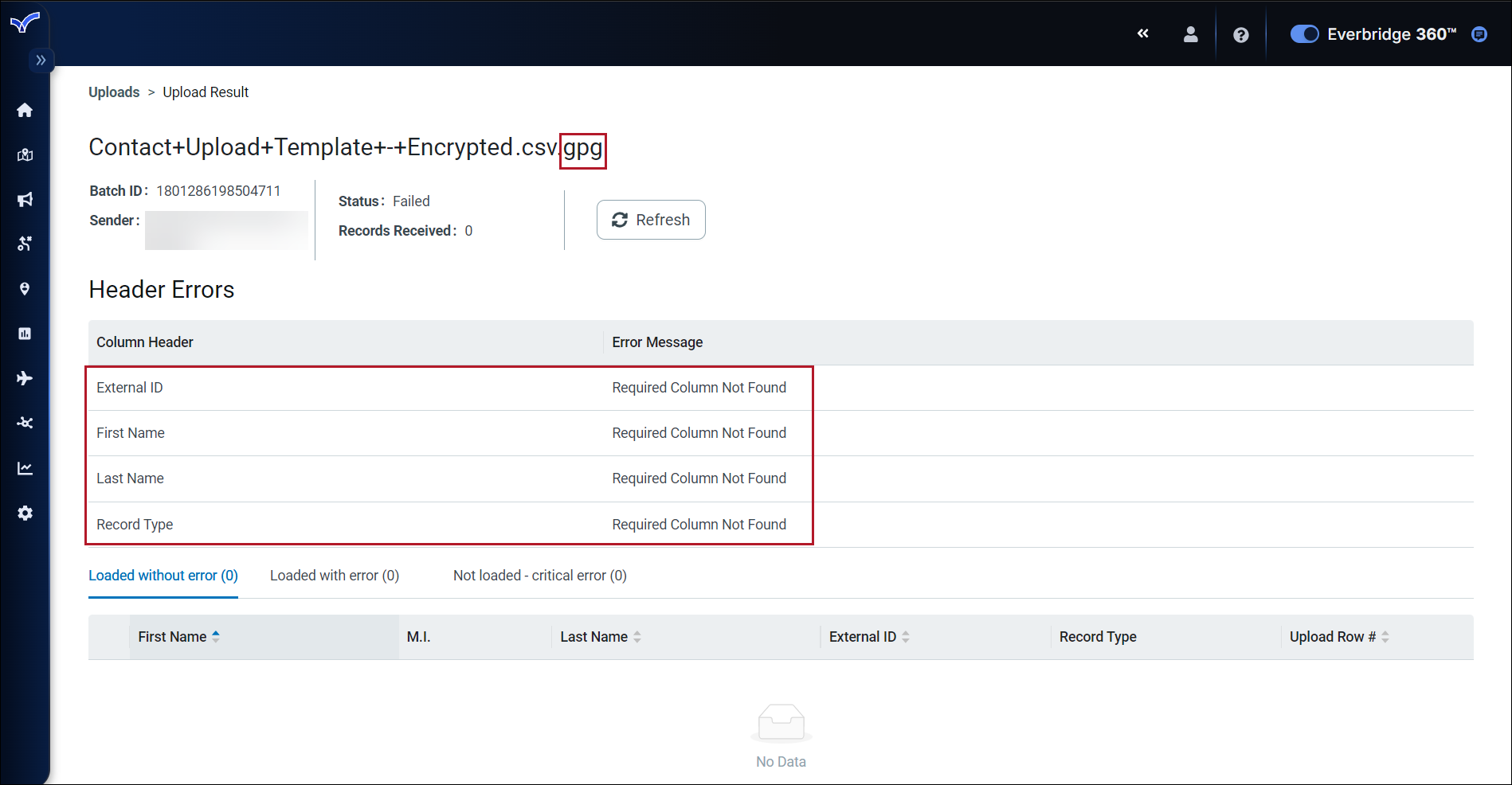

If your CSV upload file has a required column error for all four required columns (External ID, First Name, Last Name, and Record Type) and has an extension of .gpg or .pgp, then your file is encrypted but encryption is not turned on. Please notice in the screenshot below the 4 required column errors and the .gpg extension of the file.

Encrypted File - UI Error
There are two options for fixing this issue.
  1. If you want to continue without using file encryption, please make sure your CSV upload file is a standard unencrypted CSV file and try again.

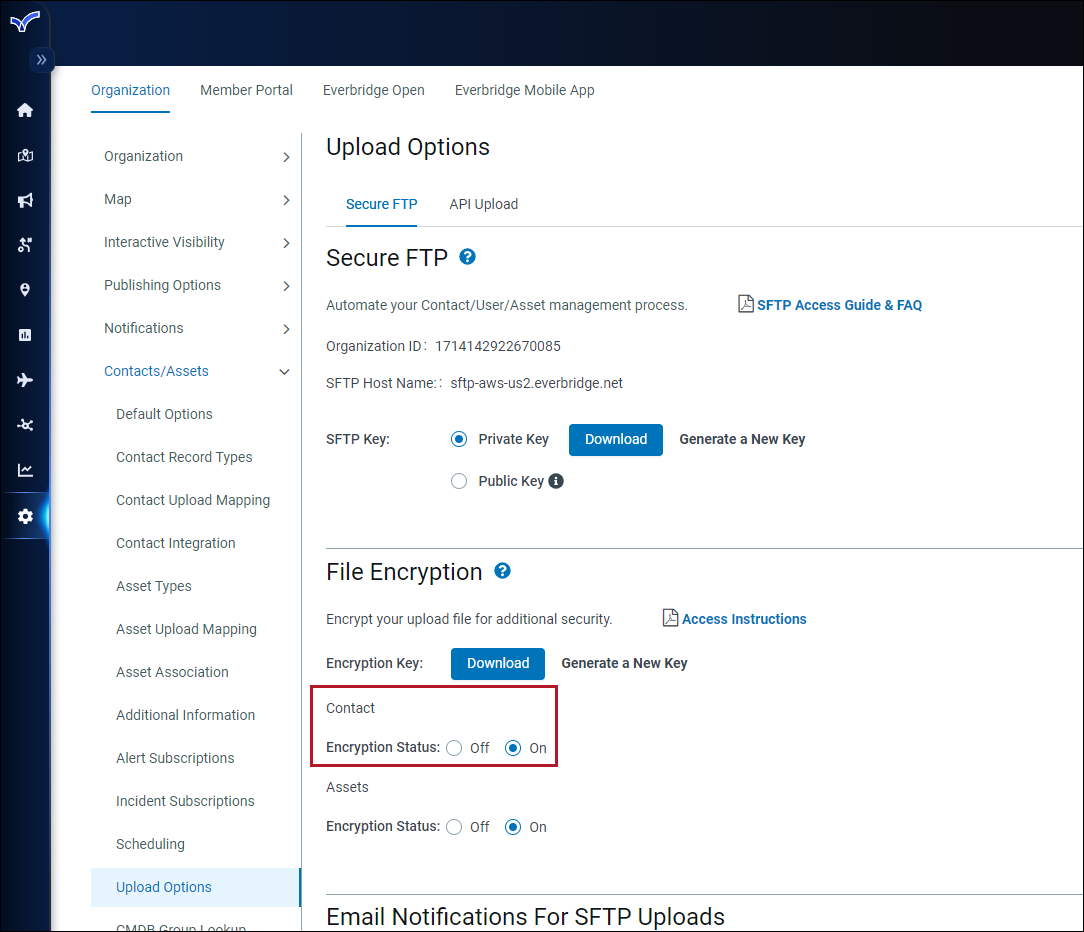

  2. If you want to enable file encryption, please follow these steps and see the screenshot below:
    1. Choose the Settings tab from the upper-left of the page.
    2. From the Organization tab, choose the Contacts and Groups menu.
    3. Choose the Secure FTP menu option.
    4. Change the Encryption Status option to On.
    5. Choose the Download button to download a copy of your Encryption KeyNOTE: Everbridge cannot troubleshoot encryption issues with your third-party encryption tool.
    6. You can also choose the option to Generate a New Key if desired, which will render any upload files using the previous key invalid. Use with caution!
Org Encryption Setting

Root Cause - Delimiter Setting

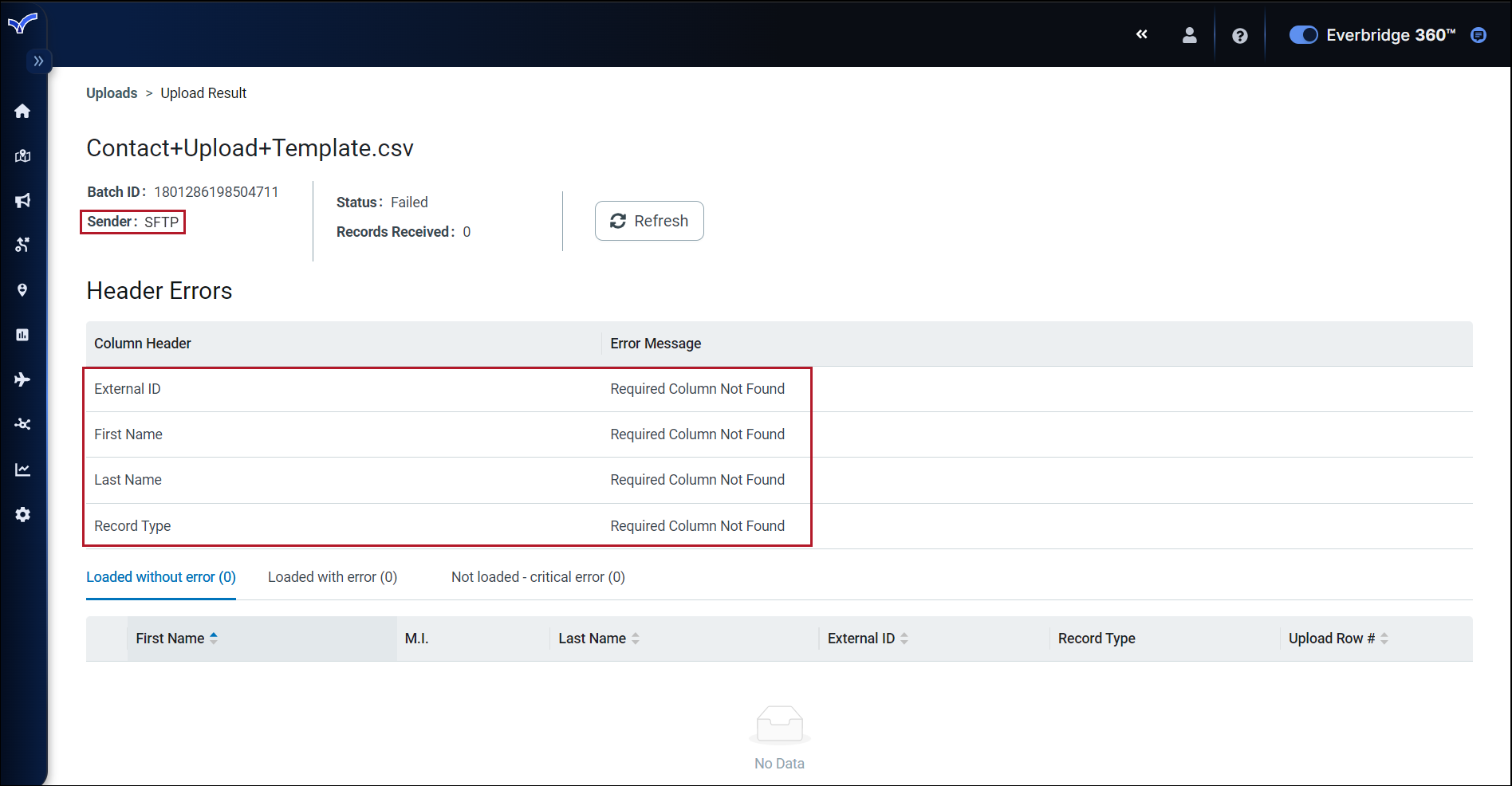

If your CSV upload file has a required column error for all four required columns (External ID, First Name, Last Name, and Record Type)  and your file was uploaded via SFTP, your organization delimiter setting might not match your file. Please notice in the screenshot below the 4 required column errors and the sender of the file is SFTP.


Wrong Delimiter Error UI

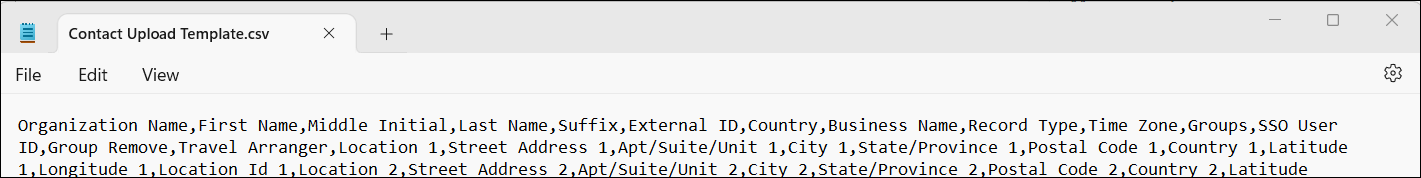

To check what delimiter your CSV upload file is using, open your file in a basic text editor, such as notepad, and observe the punctuation that separates the values. It should be a comma (,) or a semicolon (;). The example CSV file below that has been opened in Notepad is using the comma delimiter.

User-added image

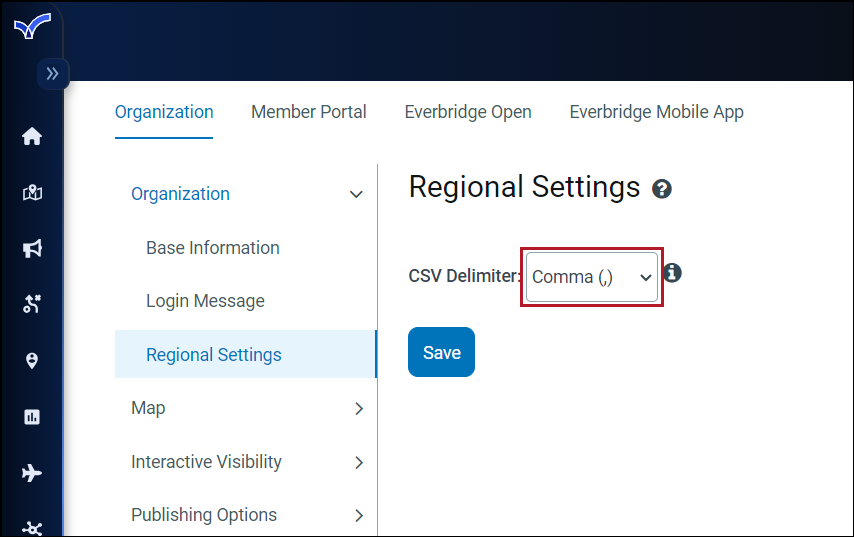

Once you have determined the delimiter that your CSV upload file is using, please insure that your organization's delimiter setting matches what is being used in the file. The organization delimiter setting can be found under Settings > Organization > Regional Settings.

Delimiter Setting

NOTE: Delimiter settings only apply to files uploaded via SFTP.
